Carbon analysis directly in air, No Argon gas required
• Fastest in world with test result in 1 second

AREAS OF USE :
• Input / output control of metals, alloys
• Sorting scrap
• Spectral analysis in laboratory studies
• Positive metal identification
• Quality testing of metal

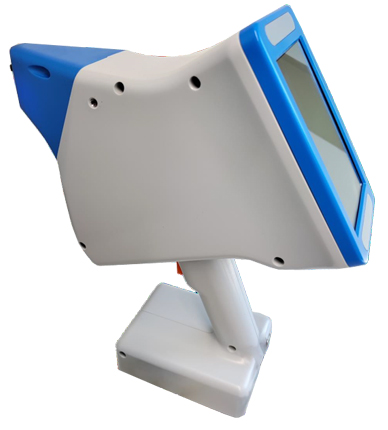

The LIS-02 Metal Analyzer is designed for operational input inspection of rolled metal products, determination of steel grades, scrap of non-ferrous and ferrous metals and alloys. The spectrometer provides high speed in determining chemical elements: C, Si, Mn, Cr, Ni, Fe, Mg, Al, V, Cu, Zn, Sn, Mo, Ti, W, Nb, Pd, Ag, Cd, Pt, Au and others.

FEATURES :
• Carbon analysis. The LIS-02 allows to measure carbon concentration in steels without using argon, directly in the air.
• Speed. High speed analysis, result in 1 sec.
• Accuracy. Provides unsurpassed resolution of 0.01 nm over the entire measurement range.
• Portability. Small dimensions and weight comparable to a handheld power tool.
• Reliable. Unlimited operating life, compared to X-ray fluorescence spectrometers (XRF).
• Built-in grade library. Based on the results of the analysis, the steel or alloy grade is displayed on the screen.
• CE Value. Measurement of carbon equivalent values
• Camera. High resolution camera to capture the location of analysis.


TECHNICAL CHARACTERISTICS

DIFFERENT BASE AND ALLOY ELEMENTS
