Both type machines feature a very simple operation. The working cycle is fully automatic. From safety point of view a double press push button starts machine, measures and stores the unbalance values on DPMS and stops machine.

Key Board facility provided on measuring panel for correct data feeding of rotor with one digit accuracy for its dimensions like 'RAD', +1 for single plane & w,d,rl,r2+11,+12 for two plane machines. When rotor is balanced within the limits respective LEDs glow up, indication no further correction is necessary.

For other details please refer standard features of measuring panel HDVM and HDVTM. Both type of machines are provided with electronic companion software to compensate the unbalance effect due eccentricity between rotating (Spindle) axis & adaptor (Rotor) axis.

Features :
Digital display for unbalance indication
Amount and angle for unbalance for both planes displayed on separate DPMS. Hence linear accuracy is very good as compared to Analog meter. Accuracy ±1 Digit for amount and ±1 Degree for angle.

Digital display for RPM indication
A DPM is provided to indicate balancing speed continuously as a standard feature.

Auto Stop
No necessary to stop machine once started. It stops automatically after stabilization of unbalance results.

HDVM 8500

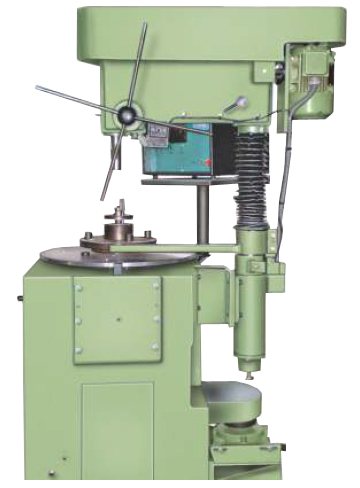

This Microprocessor based measuring panel suitable for FIE Vertical Single Plane Hard Bearing Balancing Machine.
